64x64 RGB LED Matrix Panel (3mm pitch) 4096 RGB LEDs organized in a 64x64 grid Bright color high brightness long life high color purity non-polluting LED display module Drive voltage: DC 5V

Color: white

Details:

INTRODUCTION

City night is always beautiful. She is just like a charming girl, showing her beauty every time. The colorful light is jewelry, dotted on her dress.

The led matrix has 2 IDC connectors (DATA_IN, DATA_OUT) on the back, you can cascade multiple panels and make a huge screen together. BUT Arduino doesn¡¯t support this function, its speed is not enough to multiple panel.

Note: This panel needs a 5V@5A power supply.

SPECIFICATION

Operating voltage: DC 5V

Average power consumption: <500W/©O

Maxim Power Consumption: <1000w/©O

Pixel: 64x64=4096

Level of viewing Angle: ¨R160¡ã

Control mode: Synchronous control

Drive mode: 1/16 scan rate

Repetition frequency: ¨R60Hz

White Balance Brightness: ¨R1200cd/©O

Refresh frequency : ¨R300Hz

MTTF: ¨R5000 hours

Service Life: 75000~100000 hours

Pixel pitch: 3mm

Dimension: 190 * 190 * 14.5 mm / 7.48 * 7.48 * 0.57 inches

Thickness: 11mm

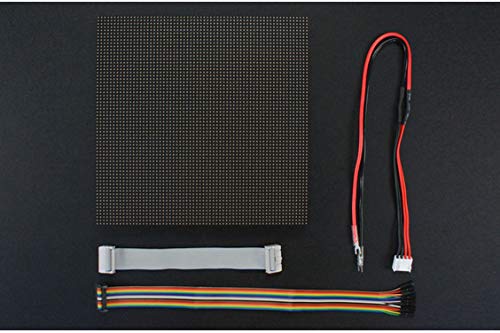

SHIPPING LIST

64x64 RGB LED Matrix Panel (3mm pitch) x1

IDC to XH2.54 cable x1

IDC to IDC cable x1

Power supply cable x1

UPC: 667176026687

EAN: 0667176026687

Model: DF-AKW9099

Binding: Personal Computers

Item Condition: New
