LSM303D 3D Compass and Accelerometer Carrier with Voltage Regulator

LSM303D 3D Compass and Accelerometer Carrier with Voltage Regulator

Regular price $13.99
Regular price Sale price $13.99
Sale Sold out

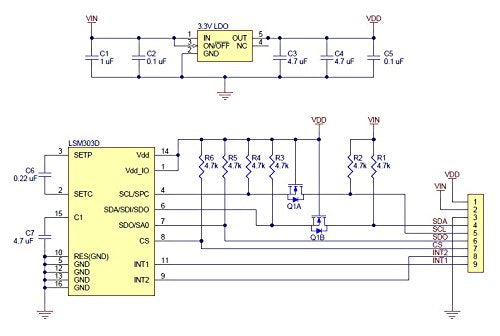

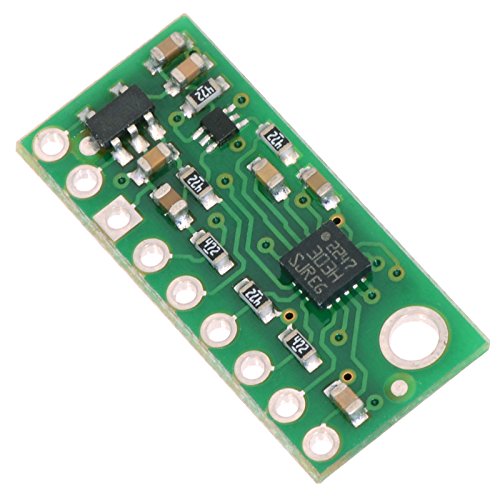

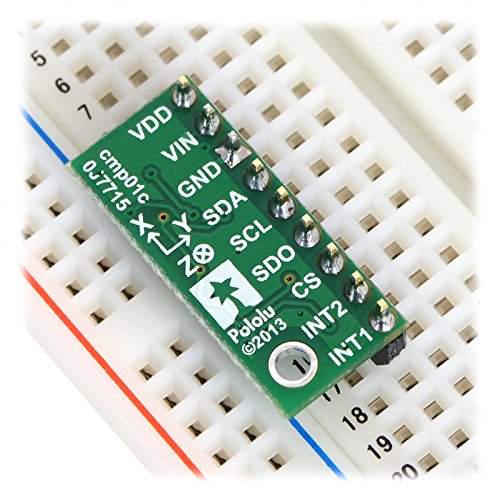

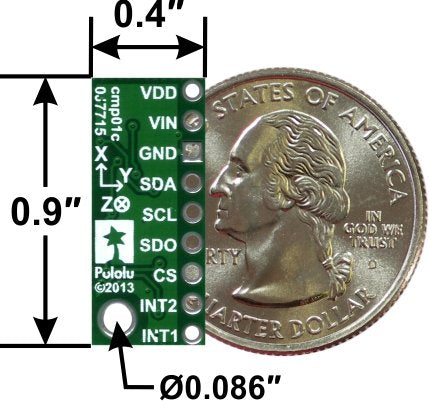

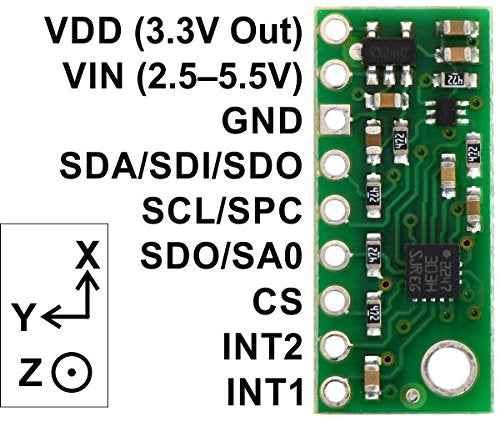

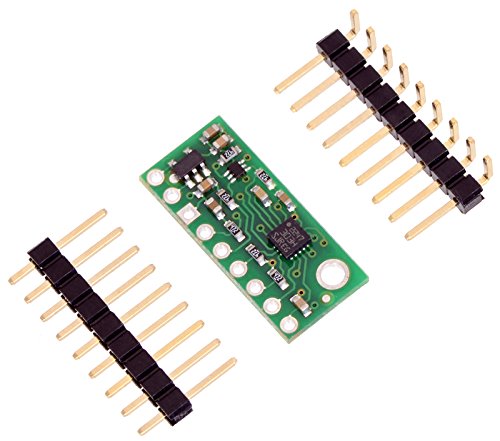

Details: The LSM303D combines a digital 3-axis accelerometer and 3-axis magnetometer into a single package that is ideal for making a tilt-compensated compass. The six independent readings, whose sensitivities can be set in the ranges of ±2 to ±16 g and ±2 to ±12 gauss, are available through I²C and SPI interfaces. This LSM303 carrier board includes a 3.3 V voltage regulator and integrated level shifters that allows operation from 2.5 to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards. This board is a compact (0.4″ × 0.9″) breakout board for ST’s LSM303D e-compass module, a single IC featuring a 3-axis digital linear acceleration sensor and 3-axis digital magnetic sensor; we therefore recommend careful reading of the LSM303D datasheet (1MB pdf) before using this product. The LSM303D is a great IC, but its small package makes it difficult for the typical student or hobbyist to use. It also operates at voltages below 3.6 V, which can make interfacing difficult for microcontrollers operating at 5 V. This carrier board addresses these issues by incorporating additional electronics, including a 3.3 V voltage regulator and level-shifting circuits, while keeping the overall size as compact as possible. The board ships fully populated with its SMD components, including the LSM303D, as shown in the product picture. Compared to its predecessors, including the LSM303DLM and LSM303DLHC used on our earlier LSM303 compass and accelerometer carrier boards, the LSM303D features a number of improvements, such as a wider maximum magnetic sensing range (up to ±12 gauss). Instead of appearing as two separate devices with distinct addresses like previous sensors, the LSM303D appears as a single unified I²C device, and it also offers an SPI interface for additional flexibility.

UPC: 602401813359

EAN: 0602401813359

Model: P2127

Item Condition: New
