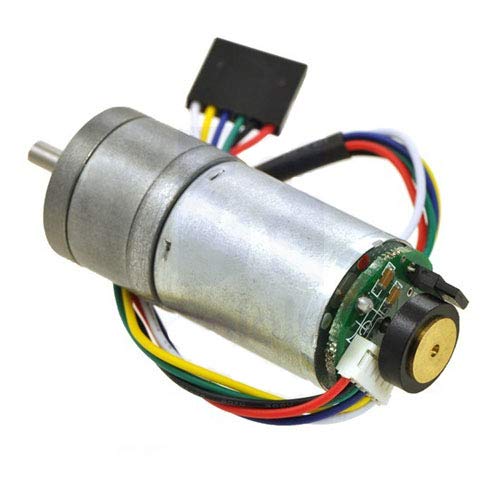

Pololu 227:1 Metal Gearmotor 25Dx56L mm LP 12V with 48 CPR Encoder (Item 3269)

Features:

• This gearmotor consists of a low-power, 12 V brushed DC motor combined with a 226.76:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 10,884.47 counts per revolution of the gearbox’s output shaft
• The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox
• Key specs at 12 V: 23 RPM and 100 mA free-run, 240 oz-in (17 kg-cm) and 1.1 A stall

Details: This gearmotor consists of a low-power, 12 V brushed DC motor combined with a 226.76:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 10,884.47 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.

UPC: 810012581790

EAN: 0810012581790

Model: 3269

Item Condition: New
