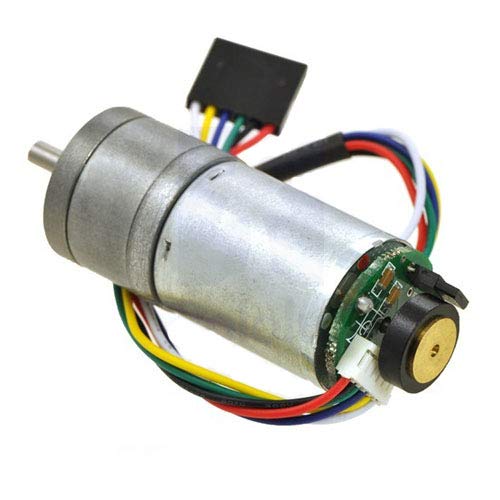

Pololu 34:1 Metal Gearmotor 25Dx52L mm LP 12V with 48 CPR Encoder (Item 3264)

Features:

• This gearmotor consists of a low-power, 12 V brushed DC motor combined with a 34.014:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 1632.67 counts per revolution of the gearbox’s output shaft
• The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox
• Key specs at 12 V: 150 RPM and 100 mA free-run, 43 oz-in (3 kg-cm) and 1.1 A stall

Details: This gearmotor consists of a low-power, 12 V brushed DC motor combined with a 34.014:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 1632.67 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.

UPC: 810012581745

EAN: 0810012581745

Model: 3264

Item Condition: New
