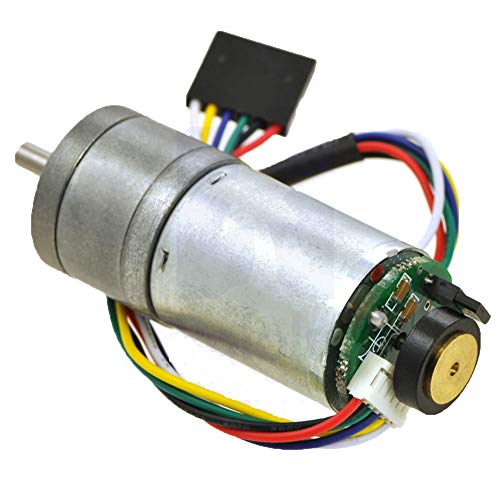

Pololu 4.4:1 Metal Gearmotor 25Dx48L mm HP 12V with 48 CPR Encoder (Item 3213)

Features:

• This gearmotor consists of a high-power, 12 V brushed DC motor combined with a 4.4:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 211.2 counts per revolution of the gearbox’s output shaft
• The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox

Details: This gearmotor consists of a high-power, 12 V brushed DC motor combined with a 4.4:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 211.2 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.

UPC: 810012581554

EAN: 0810012581554

Model: 3213

Item Condition: New
