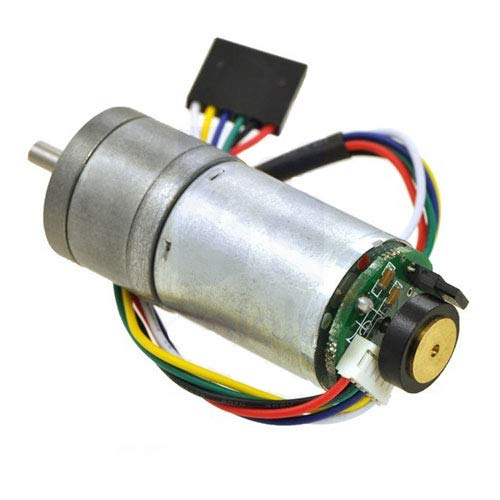

Pololu 499:1 Metal Gearmotor 25Dx58L mm LP 6V with 48 CPR Encoder (Item 2291)

Features:

• This gearmotor consists of a low-power, 6 V brushed DC motor combined with a 498.87:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 23,945.84 counts per revolution of the gearbox’s output shaft
• The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox
• Key specs at 6 V: 11 RPM and 250 mA free-run, 400 oz-in (30 kg-cm) and 2.4 A stall

Details: This gearmotor consists of a low-power, 6 V brushed DC motor combined with a 498.87:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 23,945.84 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.

UPC: 810012581097

EAN: 0810012581097

Model: 2291

Binding: Paperback Bunko

Item Condition: New
