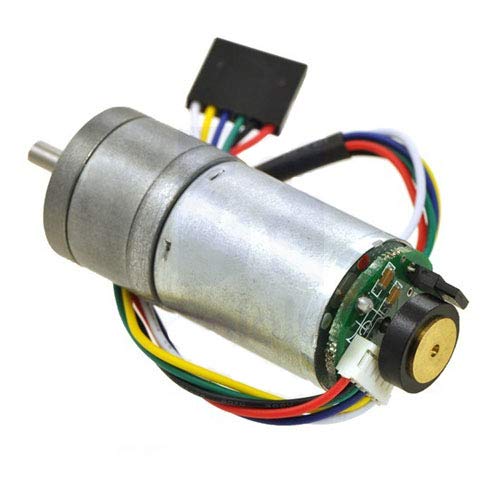

Pololu 75:1 Metal Gearmotor 25Dx54L mm LP 12V with 48 CPR Encoder (Item 3266)

Features:

• This gearmotor consists of a low-power, 12 V brushed DC motor combined with a 74.83:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 3591.84 counts per revolution of the gearbox’s output shaft
• The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox
• Key specs at 12 V: 71 RPM and 100 mA free-run, 85 oz-in (6 kg-cm) and 1.1 A stall

Details: This gearmotor consists of a low-power, 12 V brushed DC motor combined with a 74.83:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 3591.84 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.

UPC: 810012581769

EAN: 0810012581769

Model: 3266

Item Condition: New
