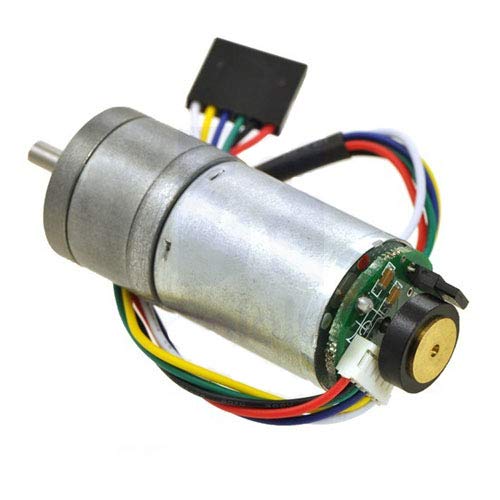

Pololu 99:1 Metal Gearmotor 25Dx54L mm HP 6V with 48 CPR Encoder (Item 2276)

Features:

• This gearmotor consists of a high-power, 6 V brushed DC motor combined with a 98.78:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 4741.44 counts per revolution of the gearbox’s output shaft
• The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox
• Key specs at 6 V: 97 RPM and 550 mA free-run, 210 oz-in (15 kg-cm) and 6.5 A stall

Details: This gearmotor consists of a high-power, 6 V brushed DC motor combined with a 98.78:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 4741.44 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.

UPC: 810012580977

EAN: 0810012580977

Model: 2276

Item Condition: New
