UPC: 641328057217
JAN: 4962615034329
Model: FA400-04
What's in the Box:
- Hakko FA-400 Smoke Absorber
- Filter
- Instruction manual
Features:

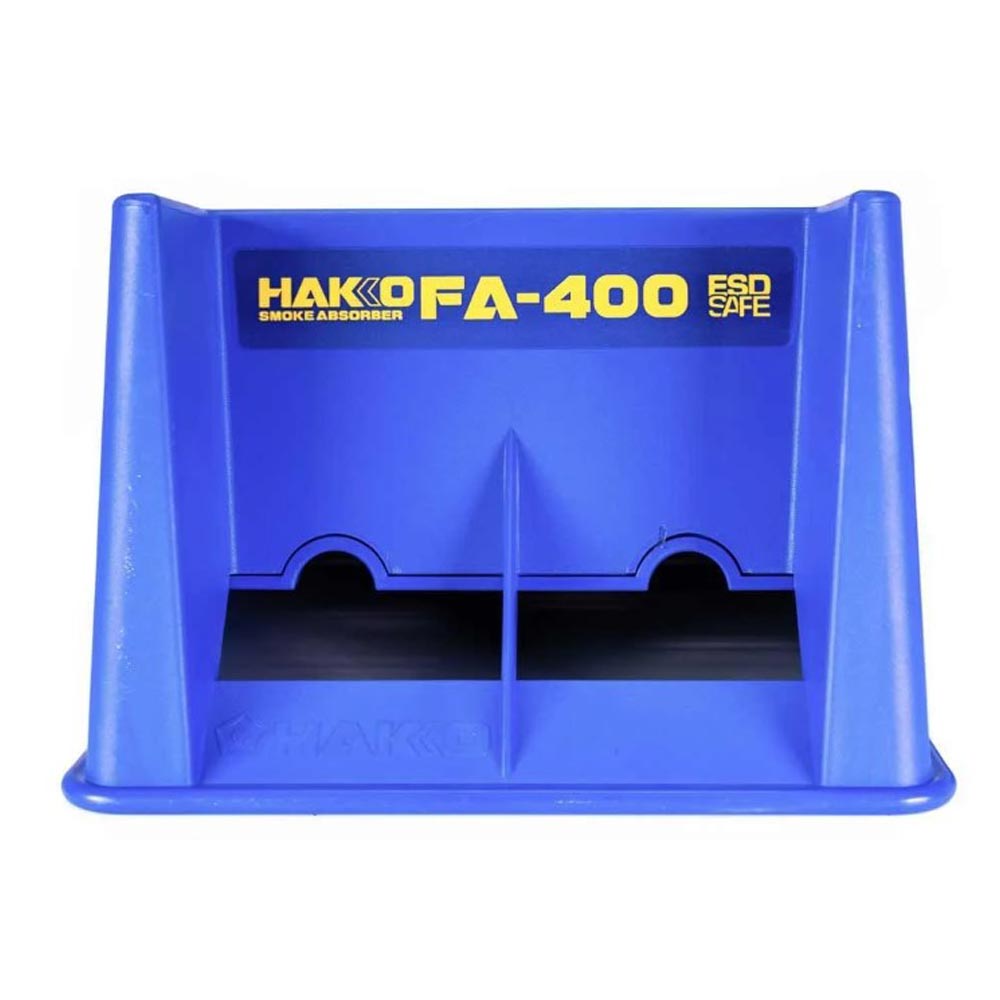

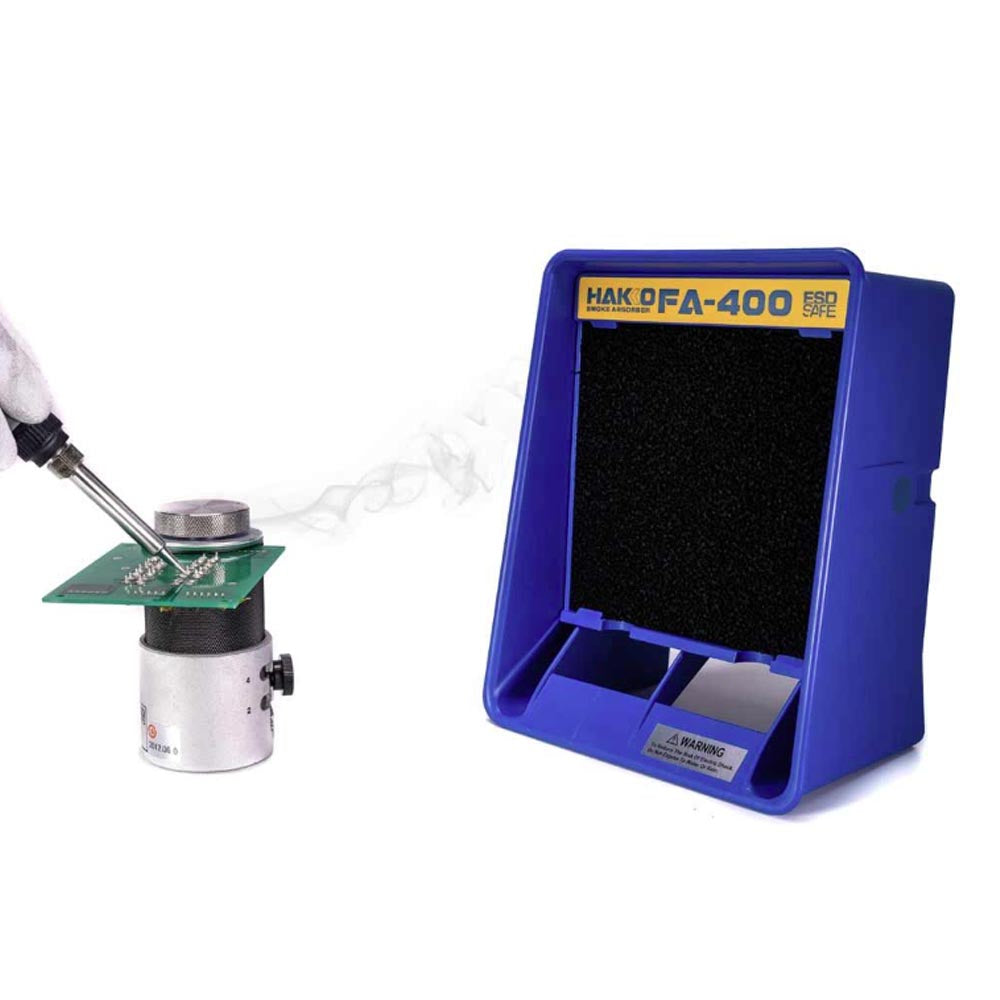

- Can be used in a vertical (standing up) position or low-profile position (laying down.)
- Unit is made of non-sloughing static dissipative conductive material and operates quietly
- Standard activated carbon filter (PN: A1001) absorbs up to 80 percent of odors and is easy to replace
- Uses existing 493 filters and accessories; ESD-safe by design

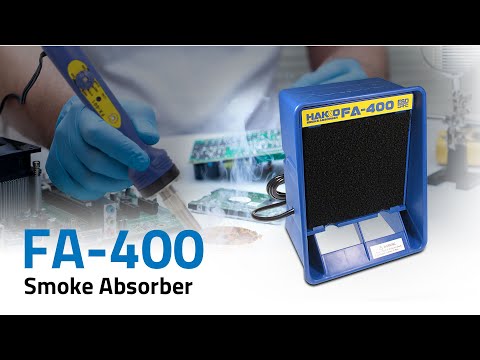

Details: Breathe easy with the Hakko FA-400 bench top smoke absorber (single unit). The FA-400 removes soldering smoke and fumes quickly, safely and efficiently. The unit can be used in a vertical (standing up) position or low-profile position (laying down.) When used in the low-profile (laying down) position, efficiency and air flow is increased by approximately 2.6 times. Optional high efficient filters are available and all filters are easily replaceable.
NOTE: The optional special high-efficiency filter (PN: 999-198) removes up to 90% of airborne particles.
When using the 999-198 High-efficiency filter the smoke absorber must be used in the vertical standing position, Or the unit may be elevated using the C1568 arm stand.
Specifications
| Part No. |
FA400-04 |
| Power Consumption |
19W |
| Absorption Capacity (w/o filter) |
Vertical Position (1.1m³/min) 38.8 CFM
Horizontal Position (0.5m³/min) 17.7 CFM |
| Outer Dimensions |
169(W) x 213(H) x 112.5(D) mm
5.5(W) x 3.0(H) x 7.3(D) in. |
| Weight |
910g (2.0 lbs.) |
| Accessories |
Filter (1 pcs.) |
| Size |
>130 x 130 x 10 mm
(5.1 x 5.1 x 0.4 in.) |
| Amount of Activated-Carbon filter |
7 g (0.03 lb.) |
| Max. Absorbing weight of noxious components per filter |
2 g (0.01 lb.) |
| Country of Origin |
JPN
|
| Safety Approval |
 |
