Hakko FA430-KIT1 Smoke and Fume Extractor with Duct & C1571 Rectangular Nozzle

UPC: 641328061740

EAN: 0641328061740

Model: FA430-KIT1

What's in the Box:

Details:

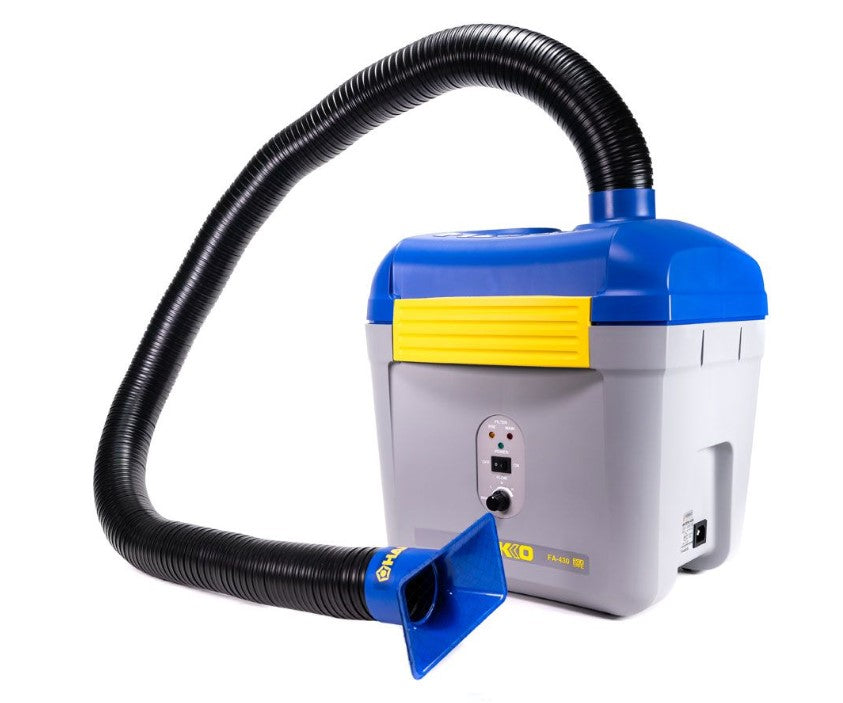

The Hakko FA-430 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area. Kit includes filter and duct kit with rectangular nozzle.

The Hakko FA-430 fume extraction unit is designed expressly for use at soldering stations, extracting the contaminated air directly at the source.

Contaminated air is captured from the workplace surrounding the soldering station by the hood or hoods, and transferred to the FA-430 unit by rigid ducts, and a special replacement filter notification function notifies the operator when the filter needs to be replaced.

Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the FA-430 is located.

The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case.

The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.

Note: Some processes may involve the use of highly corrosive substances and are not recommended for use with the FA-430.

Specifications

Part No.	FA430-16
Power Consumption	110W / 120VAC
Motor Type	Brushless
Max. Airflow (w/ single duct)	4.1 m3/min (145 cfm)
Max. Airflow (w/ two ducts)	4.7 m3/min (167 cfm)
Vacuum Pressure	1500 Pa (0.44 in. Hg)
Filtering Efficiency	>98% 0.3µm (capable of 99.97% @ 0.3µm)
Noise Level	44 - 53 dB @ 1m
Dimensions	330 (W) x 366 (H) x 343 (D) mm (13.0 x 14.4 x 13.5 in.)
Weight	7.5 kgs (16.5 lb.)
ESD Safe	Yes
Country of Origin	JPN
Safety Approval
