Hakko FA430-KIT2 Smoke and Fume Extractor with Duct & C1572 Round Nozzle

Hakko FA430-KIT2 Smoke and Fume Extractor with Duct & C1572 Round Nozzle

Regular price $982.68
Regular price $982.68 Sale price $982.68
Sale Sold out
Shipping calculated at checkout.

UPC: 641328065977

EAN: 0641328065977

Model: FA430-KIT2

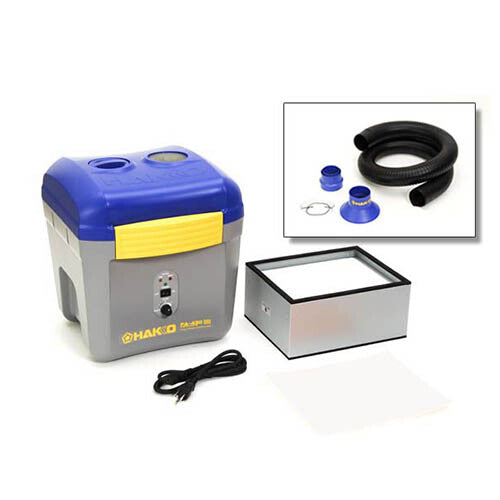

What's in the box?

 Description  Part No.
 Fume Extraction Unit  FA430-16
 Pre-filter
 A1585
 Main Filter
 A1586
 Port Cap
 B3619
 Duct Kit with round nozzle
 C1572
 Power Cable
 B3641
 Instruction Manual  --

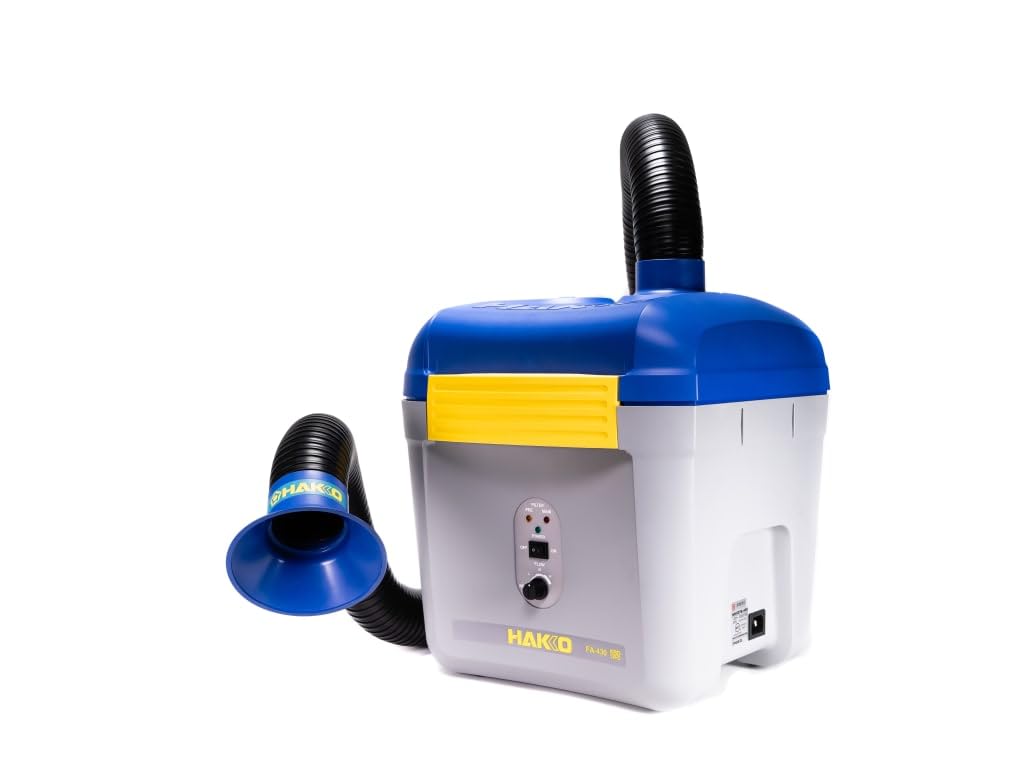

Details: The Hakko FA-430 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area. Kit includes filter and duct kit with round nozzle.

Specifications

 Part No.  FA430-16
 Power Consumption  110W / 120VAC
 Motor Type  Brushless
 Max. Airflow (w/ single duct)  4.1 m3/min (145 cfm)
 Max. Airflow (w/ two ducts)  4.7 m3/min (167 cfm)
 Vacuum Pressure  1500 Pa (0.44 in. Hg)
 Filtering Efficiency  >98% 0.3µm
(capable of 99.97% @ 0.3µm)
 Noise Level  44 - 53 dB @ 1m
 Dimensions  330 (W) x 366 (H) x 343 (D) mm
(13.0 x 14.4 x 13.5 in.)
 Weight  7.5 kgs (16.5 lb.)
 ESD Safe  Yes
 Country of Origin  JPN
 Safety Approval
