UPC: 641328078724
JAN: 4962615052880
Model: FG100B-03
What's in the box?
| Description |
Part No. |

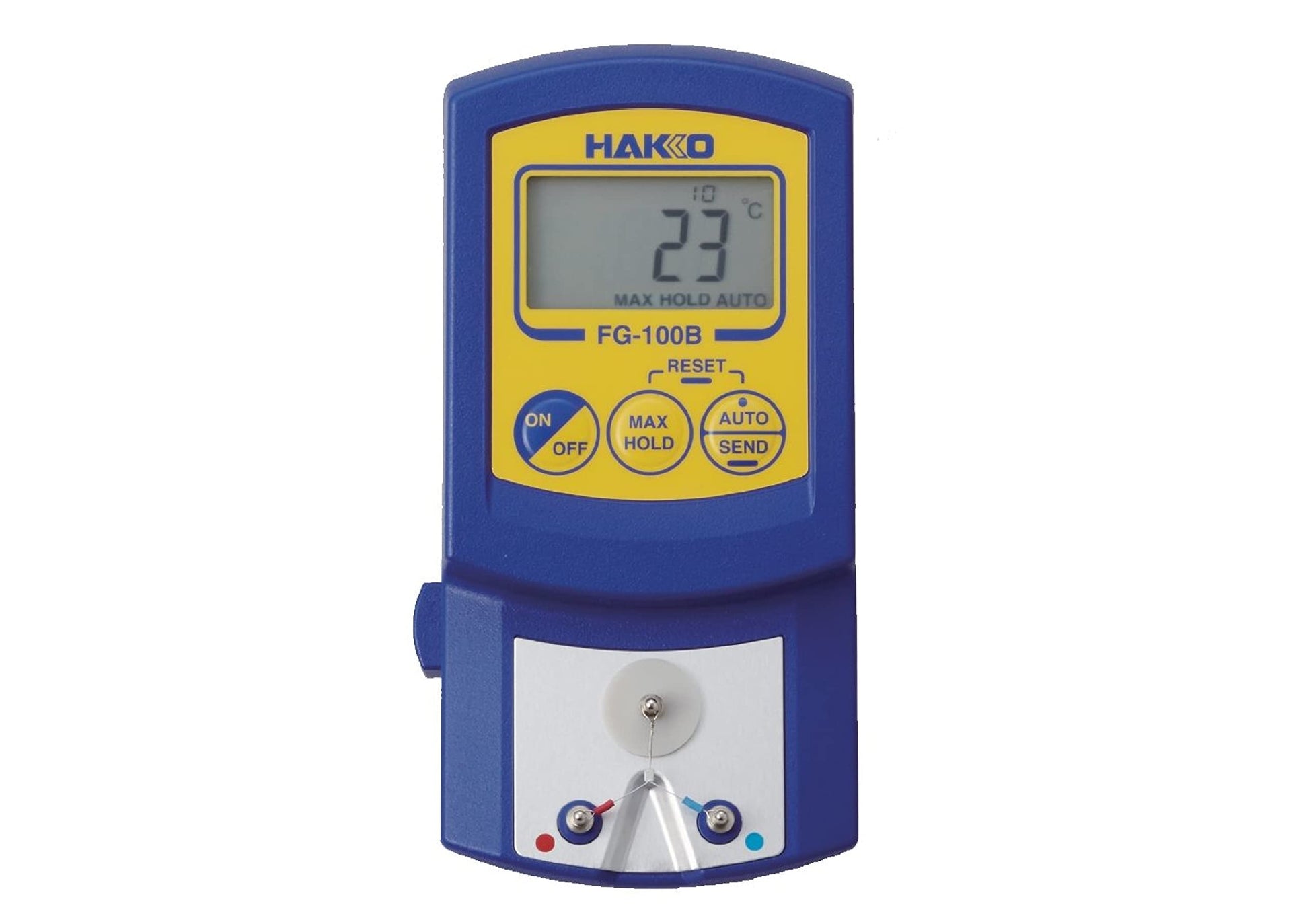

| FG-100 Tip Thermometer |
FG100B-03 |
| User Manual |
--- |
| Sensor |
AS5000 |
| 9V Battery (sample only) |
--- |
Details: This unit does everything the FG-100 did, now with a new AUTO HOLD feature that ends measurements automatically once the tip temperature is stabilized. This feature can minimize individual differences in measuring temperatures. The FG-100B can also display in both °C and °F!
- The sensor (P/N: 191-212) has a special metal alloy coating that resists corrosion and oxidation. Note: the 191-212 sensor can measure temperatures up to 500°C (932°F). For higher temperatures, please use the applicable temperature probe (see Accessories: P/N A1310.)
- Sensor replacement is quick and easy
- AUTO HOLD feature
- User selectable easy-to-read temperature display allows the reading to display in either °C or °F
- Optional temperature probe to measure solder pot temperatures
Note: For thermometer with the Calibration Certificate, please order FG100B-US03.
Specifications
| Part No. |
FG100B-03 |
| Resolution |
°F |
°C |
| Range of Measurement1 |
32 - 1300°F |
0 - 700°C |
| Applied Sensor |
K(CA) Type Thermocouple |
| Measurement Tolerance2 |
±6°F
(572 - 1112°F) |
±3°C
(300 - 600°C) |
| Power Supply |
9V battery (alkaline cell recommended) |
Dimensions
(excluding protrusions) |
75 x 44 x 140 mm
2.95 x 1.73 x 5.51 in. |
Weight
(w/out battery) |
0.28 lbs. (125 g) |
| Operating Environment |
0-40°C (32-104°F)
20-90% RH no condensation |
| Pollution Degree Rating |
Pollution Degree 2 |
| Standards & Ratings |

|
1 Temperature sensor (PN: 191-212) can only be used to measure temperatures below 500 °C (932°F). To measure higher temperatures, use an applicable temperature probe.
2 Measurement tolerance is ±5°C / ±10°F for measurements outside the range given for measurement tolerance above.
