Hakko

Hakko FM-2022 SMD Parallel Remover Kit (Hot Tweezers) for FM-206, FM-203 or FM-202 Soldering Station

Hakko FM-2022 SMD Parallel Remover Kit (Hot Tweezers) for FM-206, FM-203 or FM-202 Soldering Station

$295.20
$295.20 $295.20
Sale Sold out
Shipping calculated at checkout.

UPC: 641328051574

JAN: 4962615028885

Model: FM2022-05

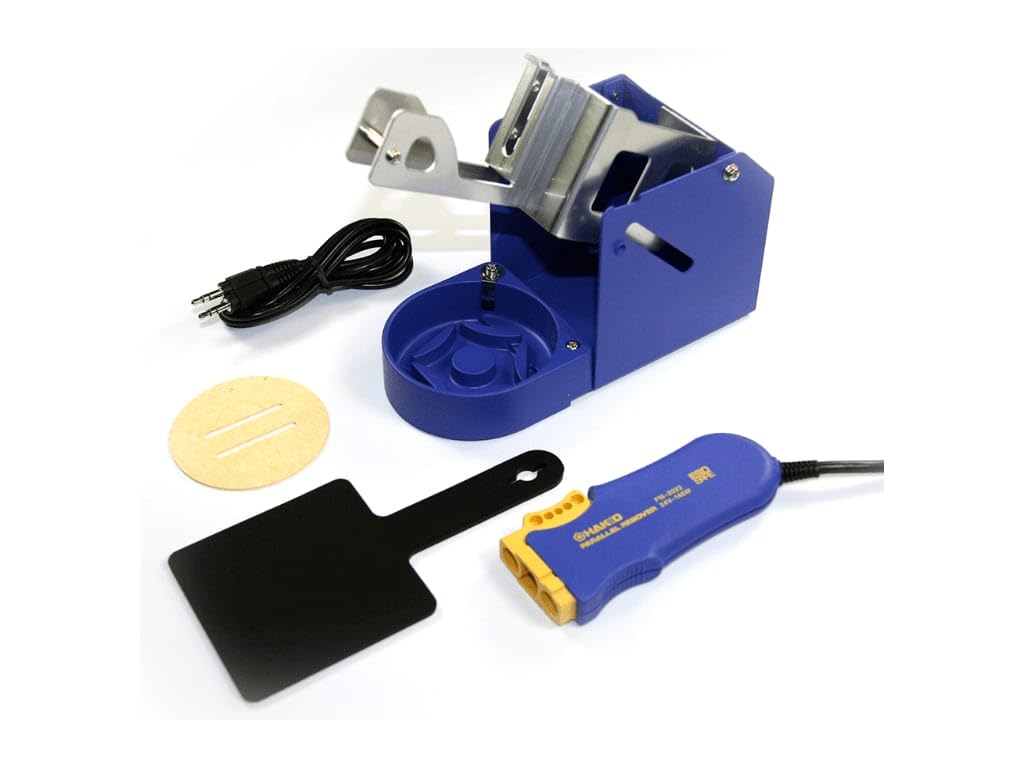

What's in the box?

 Description  Part No.
 Handpiece  FM2022-02
 Heat resistant pad  B2300
 Sleep Holder w/ Sponge  FH200-03
 Connector Cable  B3253
 Tips not included -----



Details: The Hakko FM-2022 SMD Parallel Remover uses revolutionary parallel action between the tip ends-one tip remains stationary allowing greater surface contact between the tip and the component and providing more efficient and even heat transfer.

Note: Tips not included

The Hakko FM-2022 SMD Parallel Remover uses revolutionary parallel action between the tip ends (one tip remains stationary) allowing greater surface contact between the tip and the component and providing more efficient and even heat transfer. FOR USE WITH THE FM-206, FM-203 OR FM-202 SOLDERING STATION ONLY.

Whether removing small chips or larger SOP components, the parallel action of the FM-2022 also allows for a more secure hold onto the component.

  • Parallel Remover uses the same quick-change composite tip technology as the popular FM-206, FM-203 or FM-202 soldering station
  • Fixing collar properly aligns the tips opposite each other
  • Changing tips for different types of components has never been easier.
  • Sleep holder allows the handpiece to be put to sleep when not in use, which helps reduce oxidation buildup and extend tip life (Sleep function available with FM-203 ONLY)
  • ESD Safe by design

Specifications

 Model Name  FM-2022
 Part Number  FM2022-02
 Power Consumption  140W (24V)
 Temperature Range  200°C - 400°C (400°F - 750°F)
 Temperature Accuracy  ±15°C (±27°F) of set temperature
 Temperature Stability  ±5°C (±9°F) at idle temperature
 Tip to Ground Resistance  < 2 ohms
 Tip to Ground Potential  < 2mV (Typical 0.6mV)
 Cord Assembly  1.2m (4 ft.)
 Total Length (w/o Cord and Tip)  110mm (4.3 in.)
 Total Weight (w/o Cord)  53g (Handpiece)
11g (SOP 25L Tip only)
