UPC: 641328051581
JAN: 4962615030215
Model: FM2023-05

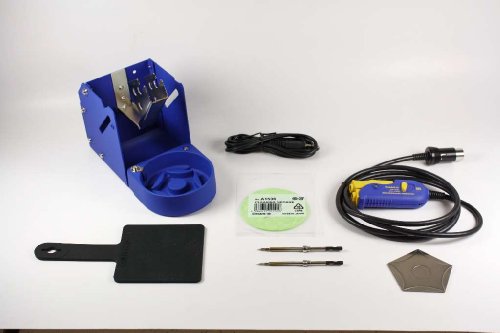

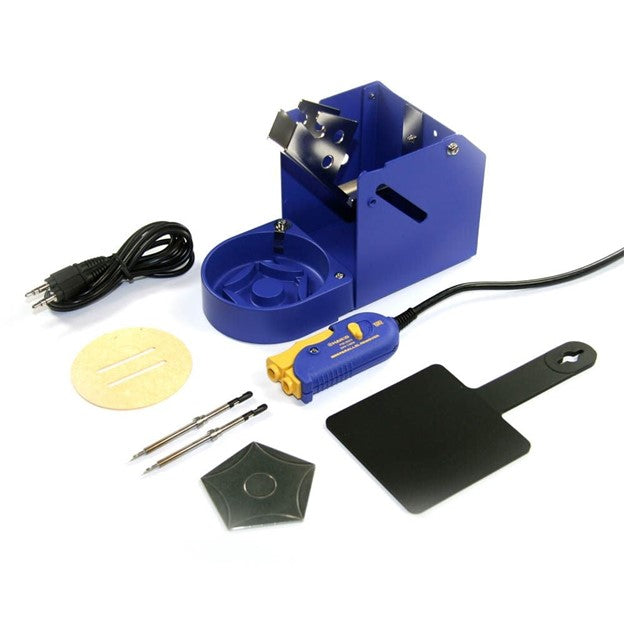

What's in the box?
| Description |
Part No. |

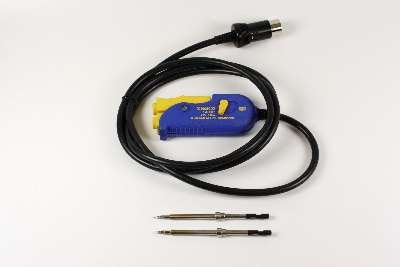

| Handpiece |
FM2023-02 |
| Tip, (I shape) |
T9-I |

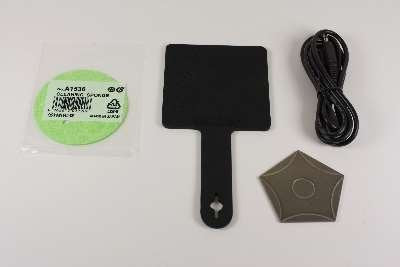

| Heat resistant pad |
B2300 |
| Cleaning sponge |
A1519 |

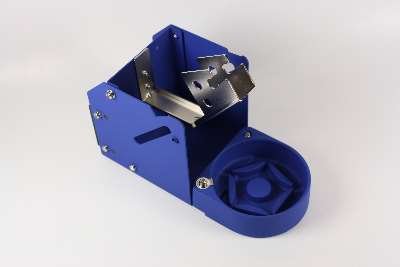

| Iron Holder |
FH200-04 |
| Component bed |
B2849 |
| Connector Cable |
B3253 |
Details: Hakko’s FM-2023 Mini Hot Tweezer tool is designed for use with small chip components, as small as 0201. This Tweezer tool has a unique feature allowing it to work in standard or reverse action mode.
The Hakko FM-2023 is designed for use with small chip components as small as 0201. The Mini Parallel Remover has a unique feature allowing it to work as a standard or reverse action tweezer. A simple flip of a switch sets the action of the tool. FOR USE WITH THE FM-206, FM-203 OR FM-202 SOLDERING STATION ONLY.
Specifications
| Model Name |
FM-2023 |
| Part Number |
FM2023-05 |
| Power Consumption |
140W (24V) |
| Temperature Range |
200°C - 400°C (400°F - 750°F) |
| Temperature Accuracy |
±10°C (±28°F) of set temperature |
| Temperature Stability |
±5°C (±9°F) at idle temperature |
| Tip to Ground Resistance |
< 2 ohms |
| Tip to Ground Potential |
< 2mV (Typical 0.6mV) |
| Cord Assembly |
1.2m (4 ft.) |
| Total Length (w/o Cord and Tip) |
75mm (3.0 in.) |
| Weight, Handpiece only (w/o cord) |
32g (1.1 oz.) |
| Weight, T9-I tip |
5g (0.18 oz.) |
| Standard tip |
T9-I |
