UPC: 641328065847
JAN: 4962615044199
Model: FR-870B
What's in the box?
| Description |
Part No. |
| FR-870B 2-Bank Preheater |
---
|
Thermocouple
|
B3516 |
Spare Heating Lamp
|
A5003 |
Power Cord
|
B2419 |
| Instruction Manual
|
---
|

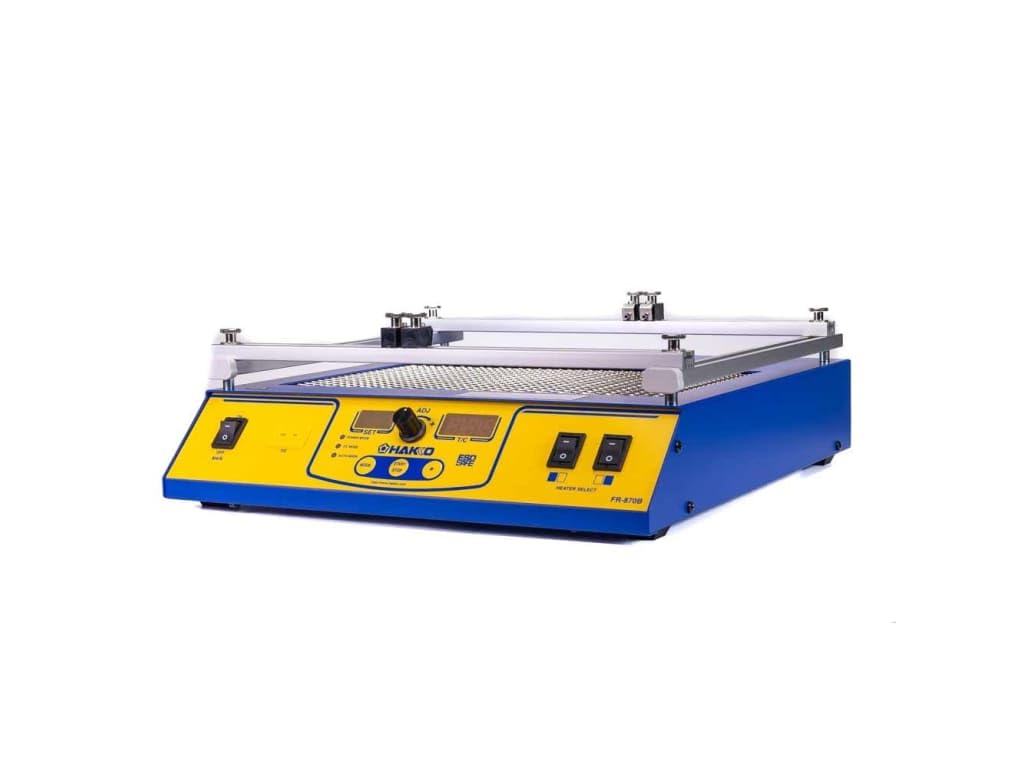

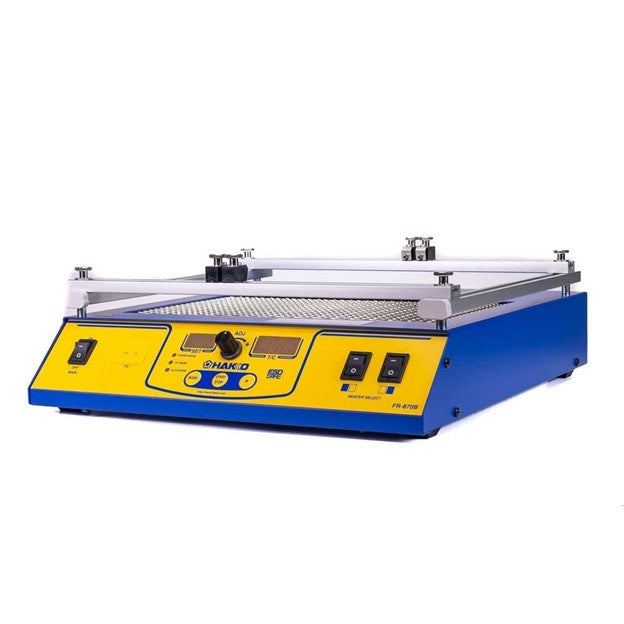

Details: The FR-870B is a bench-top board heater designed to elevate the temperature of printed circuit board assemblies so that components on them can be soldered and de-soldered more easily, and with improved results. This is particularly useful on medium to high-mass board assemblies, which can “heat-sink” a significant amount of energy being supplied by a soldering iron tip, or handheld hot-air tool. This tool is particularly useful when soldering Pb-free assemblies.
The FR-870B is an updated replacement for the popular Hakko FR-870 IR Preheater that includes an upgrade to use the new high efficiency carbon filament lamps and the new software features found in the FR-872 4-zone IR preheater, thus allowing you to control the ramp rate at 1, 2, or 3 degrees Celsius per second when you are in one of the two thermocouple modes.
- 2 independent switchable zones
- 248 mm x 140 mm PCB capacity
- Manual or Auto modes of operation
- Preheat control by Power or Thermocouple
- Soft EPO to protect assemblies
- Small footprint and low profile
- Faster than ceramic IR heating
- Integrates with the Hakko FR-803B and FM-206
- Easy to remove reflector for cleaning and finding lost components
Specifications
| Model Name |
FR-870B |
| Part No. |
FR870B-04 |
| Input Voltage |
120 VAC 50/60 Hz |
| Power Consumption |
730W |
| Board Capacity |
9.8 x 5.5 in. (248 x 140 mm) |
| Effective Heating Area (W x D) |
7.5 x 3.2 in. (190 x 80 mm) |
| Maximum Board Depth |
8.7 in. (220 mm) |
| Heating Zones |
2 |
| Operating Modes |
Manual - Power
Manual - Thermocouple
Automatic - Power
Automatic - Thermocouple |
| External T/C Range |
122 - 392°F (50 - 200°C) |
| External T/C Stability |
±9°F (±5°C) |
| Power Range |
0 - 100% (1% increments) |
| T/C Inputs |
1 |
| Heater Type |
High Efficiency Carbon Filament |
| Heater Control |
Power - percentage-based Thermocouple - PID Control |
| Zones |
2 |
| Heater Lamp MTBF |
~2100 hours |
| External Connections1 |
1 - integrates with FM-206 |
| Weight |
7.1 lb. (3.2 kg) |
| Dimensions (W x H x D) |
11.7 x 3.9 x 12.2 in.
296 x 100 x 311 mm |
| Shipping Weight |
10.5 lb. (4.77 kg) |
| Shipping Dimensions (W x H x D) |
16 x 8 x 16.7 in. (407 x 203 x 425 mm) |
| ESD Safe |
Yes |
| Country of Origin |
JPN
|
| Safety Approval |
 |
1Requires optional cable (not included)
