UPC: 641328084367
JAN: 4962615057083
Part Number: FX-1003-84

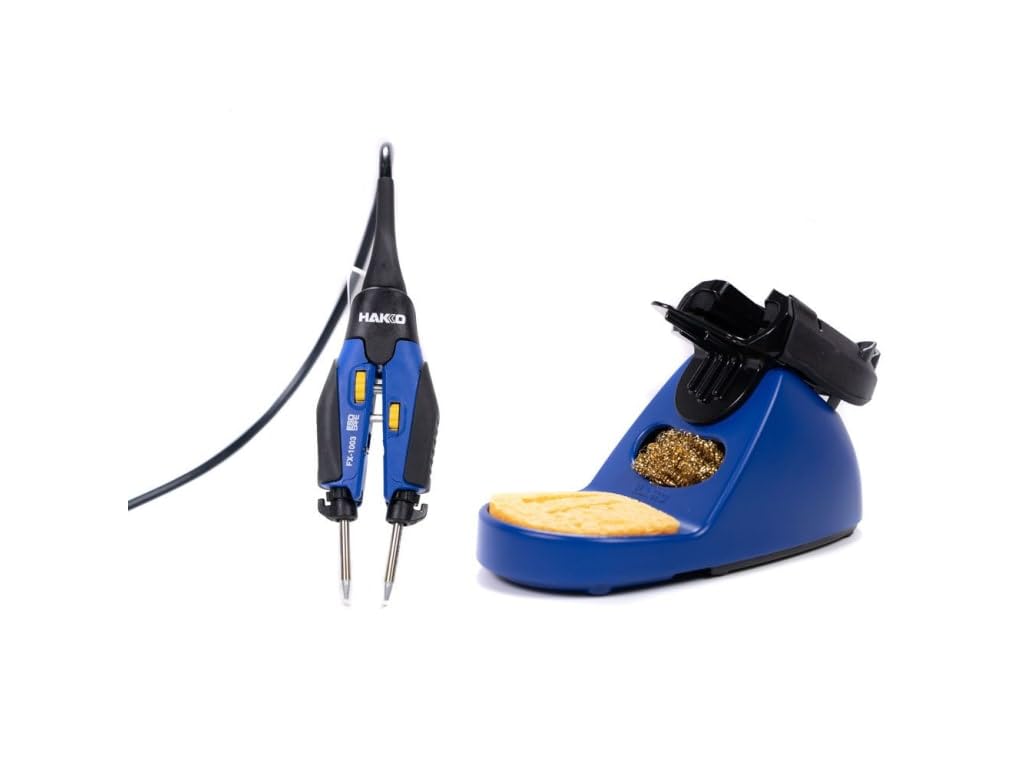

What's in the box?
| Description |
Part No. |
| Micro Tweezer Handpiece |
FX1003-83 |
| Holder |
FH800-84BY |
| Instruction Manual
|
-- |
Details:

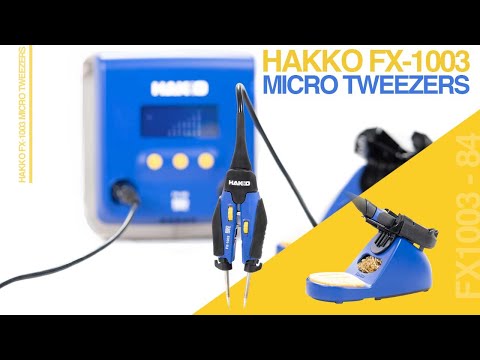

Introducing the FX-1003 Induction Heating Micro Tweezers for micro SMD components. Designed for the Induction Heating FX-100 Soldering Station, these micro tweezers can handle components as small as 01005 (0402mm). The FX-1003 utilizes the new T38 Tips that have 2 different temperature ranges and 7 different shapes. Perfectly aligned tips with superior performance of the induction heating technology, the new HAKKO FX-1003 IH Micro Tweezers is the ideal tool for small component rework.
- The FX-1003 has 4 types of alignment adjustments: Vertical, Horizontal, Rotation, Length
- T38 Tips temperature: 750°F and 660°F
- The handpiece is designed with an ergonomic shape for comfort and is ESD safe
- The holder can store spare tips and makes changing out hot tips easy and convenient
- While resting in the holder the handpiece activates the FX-100's sleep mode to maximize tip life
Specifications
| Model Name |
FX-1003 |
| Part No. |
FX1003-84 |
| Tip Series |
T38-02: 750°F (400°C), T38-03: 660°F (350°C) |
| Type of Station |
HAKKO Induction Heating Soldering Station |
| Tip to Ground Resistance |
<2 Ω |
| Tip to Ground Potential |
<2 mV |
| Output Frequency |
13.56 MHz |
| Heater |
IH (High-Frequency Induction Heating) |
| Cord Length |
1.3 m (4.3 ft) |
| Total Length* |
130 mm (5.1 in) |
| Weight* |
32 g (0.07 lb) |
