UPC: 641328086354
JAN: 4962615058165
Part Number: FX305-03
What's in the box?
| Description |
Part No. |
| Soldering Pot Unit |
FX305-03 |
| Spatula |
B2932 |
| J-shaped Waste Collector |
B2919 |
| Hexagon Wrench |
B1416 |
| 75 x 75 mm Crucible |
A5068 |
| USB Cable |
B5129 |
| Pot Cover |
B5322 |
| Power Cord |
B2419 |
| Instruction Manual |
-- |
| CD-ROM for PC Software |
-- |

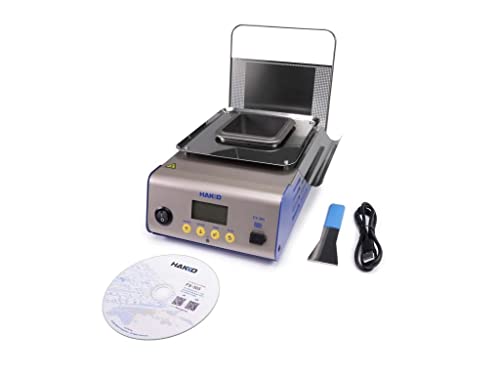

Details: The new digital solder pot from Hakko. The FX-305 comes with a standard 75 x 75 crucible size, a new cover to protect from solder splatter, and new software to be easily programmed from any PC. The new LCD display gives clear icon indicators that allow the user to know when its in different modes, locked, or in a specific profile. FX-305 is only compatible with the HAKKO CONTROL SOFTWARE V2 or higher.
The HAKKO FX-305 Digital Solder Pot comes with a standard 75 x 75 mm crucible and is perfect for tinning leads and for soldering components. The FX-305 features a new 100 x 100 mm crucible size, an LCD display, and new Hakko Control Software that makes setting parameters and temperature fast and easy.
Specifications
| Solder Pot Unit |
|
| Model Name |
FX-305 |
| Part No. |
FX305-03 |
| Power Consumption |
575W (120V) |
| Temperature Accuracy* |
±10°C (±18°F) |
| Temperature Stability |
±5°C (±9°F) |
| Weight (w/o solder and cord) |
1.7 kg (3.74 lb.) |
| Outer Dimensions |
162(W) x 100(H) x 239(D) mm |
| Country of Origin |
JPN
|
| Safety Approval |
 |
*Value is based on a full standard crucible at idle after calibration.
FX-305 Crucibles
| |
50 x 50 mm Square |
75 x 75 mm Square |
100 x 100 mm Square |
| Temperature range |
50-530°C
(120-990°F)
|
50-500°C
(120-940°F)
|
50-450°C
(120-840°F)
|
| Crucible Dimensions |
50(W)x50(D)x42.5(H) mm
2.0(W)x2.0(D)x1.7(H) in. |
75(W)x75(D)x42.5(H) mm
3.0(W)x3.0(D)x1.7(H) in. |
100(W)x100(D)x53(H) mm
3.9(W)x3.9(D)x2.1(H) in. |
