UPC: 641328086170
JAN: 4962615058554
Part Number: FX-805-03

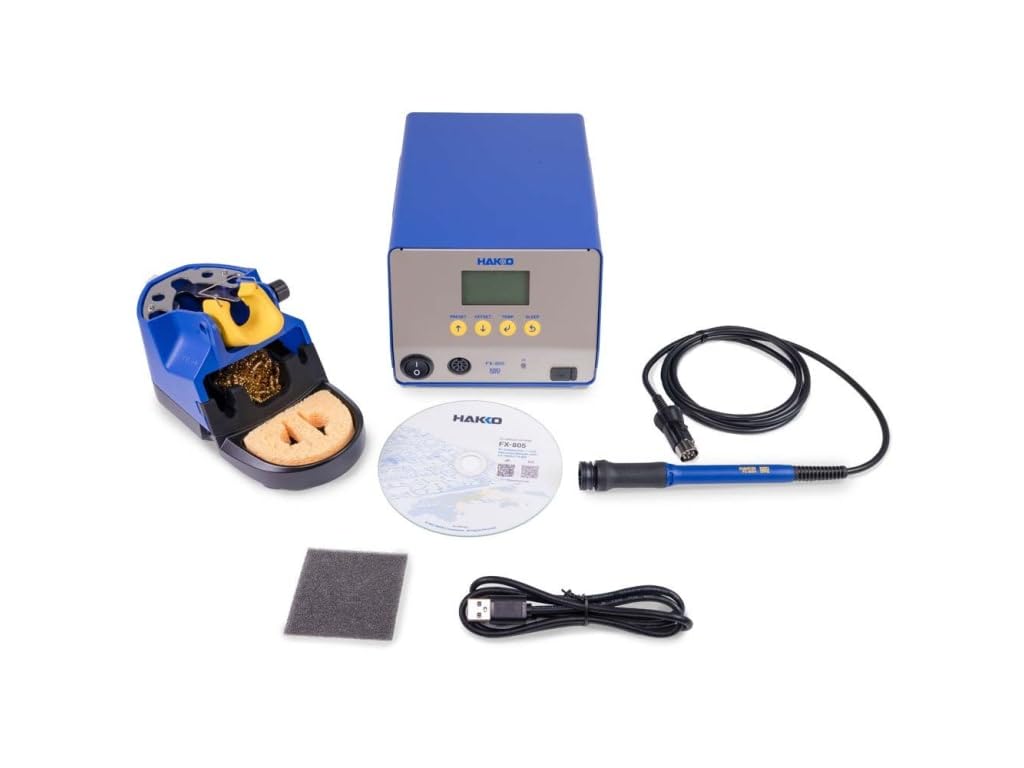

What's in the box?
| Description |
Part No. |
| Soldering Station |
FX-805 |
| Soldering Iron |
FX8004-81 |
| Iron Holder w/ Tip Cleaner |
FH220-82 |
| USB Cable |
B5129 |
| (1) Filter |
AF5000
|
| Power Cord |
B2419 |
| Instruction Manual
|
-- |
| CD-ROM for PC Software
|
--
|
Details: The FX-805 Ultra Heavy-Duty Soldering Station is the ultimate solution in the Large Current Era. Specifically designed for large mass components with high current, large transformers, and difficult heat sinks, nothing gives you the power quite like Hakko. A 400W powered Ultra Heavy-Duty soldering station with new software capabilities, new T37 tips, and and is backwards compatible to work with T33 Tips.
Note: Tips Not Included

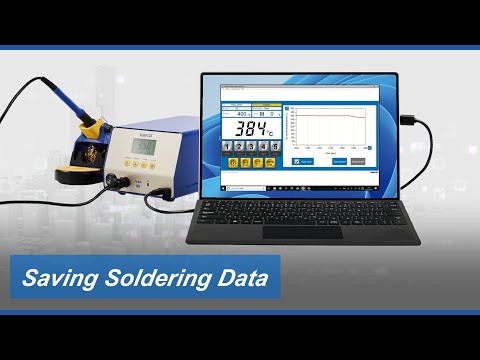

The Hakko FX-805 packs 400W of power, meant for difficult soldering of large mass components such as high current inductor coils, large transformers, shields, and difficult to solder heat sinks. The station has new T37 390W Tips and is also backwards compatible with T33 260W tips that have top controlled temperatures and multiple shapes. All with a brand-new software easy to use operating system to make programming and testing easy as 1, 2, 3.
Specifications
| Station |
|
| Model Name |
FX-805 |
| Part No. |
FX805-03 |
| Output Voltage |
30V |
| Power Consumption |
460W |
| Temperature Range |
120°- 940°F (50°C - 500°C) |
| Temperature Stability |
±9°F (±5°C) |
| Outer Dimensions |
5.7 x 4.2 x 8.6 in. (143 x 107 x 218 mm) |
| Weight (w/o cord) |
8.6 lb. (3.9 kg.) |
| Country of Origin |
JPN
|
| ESD Safe |
Yes
|
| Soldering Iron - Handpiece |
|
| Model Number |
FX-8004 |
| Part Number |
FX8004-81 |
| Power Consumption |
390W (30V) |
| Tip-to-Ground Resistance |
< 2 OHMS |
| Tip-to-Ground Potential |
< 2mV |
| Heater |
HAKKO Composite CeramicTM |
| Length of Cord |
3.9 ft. (1.2 m) |
| Total Length (w/o cord) |
9.6 in. (244 mm) |
| Weight (w/o cord) |
0.11 lb. (54g) |
| Tips (not included) |
T37 Series |
1Tip is not included
2As measured with T37-D24 Tip installed
