UPC: 641328051550
JAN: 4962615027741
Part Number: FX300-03
What's in the box?
| Description |
Part No. |
| Soldering Pot Unit |
FX300-03 |
| Spatula |
B2932 |
| J-shaped Waste Collector |
B2919 |
|
| Hexagon Wrench |
B1417 |
| 50 x 50 mm Standard Crucible |
A1517 |

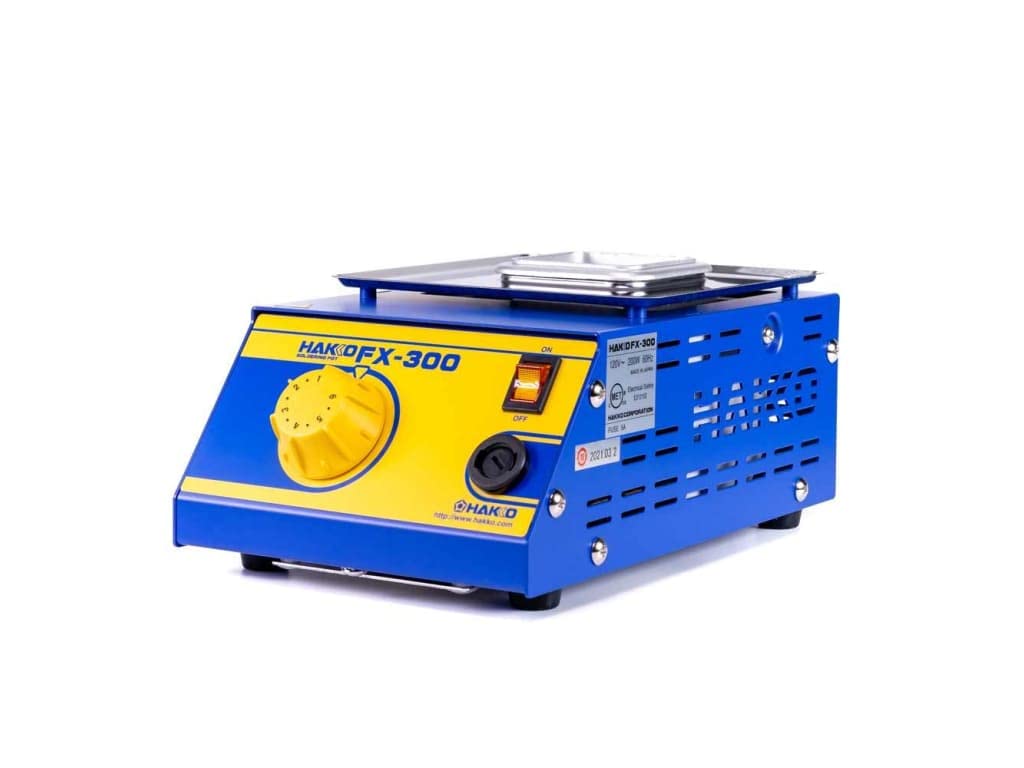

Details: Hakko’s FX-300 Solder Pot features analog functionality and a rugged ceramic heating element. This soldering pot is lead-free compatible and can accommodate two pot sizes.
The Hakko FX-300 analog, Lead-Free compatible, soldering pot features:
- -Analog functionality
- -Variable temperature control
- -Ceramic heating element
- -Easy pot replacement
- -Accomodates two pot sizes (50 mm and 75 mm square)
Specifications
| Station |
|
| Model Name |
FX-300 |
| Part No. |
FX300-03 |
| Power Consumption |
290W (120V) |
| Temperature Stability |
±5°C (±9°F) |
| Weight (w/o solder and cord) |
1.7 kg (3.74 lb.) |
| Outer dimensions |
143(W) x 100(H) x 220(D) mm
(5.6 x 4.0 x 8.7 in.) |
| Country of Origin |
JPN
|
| ESD Safe |
Yes |
| Safety Approval |
 |
| |
50 x 50 mm Square |
75 x 75 mm Square |
| Temperature Range |
200-450°C (400-840°F) |
200-380°C (400-720°F) |
| Solder Pot Dimensions |
50(W)x50(D)x43.5(H) mm
2.0(W)x2.0(D)x1.7(H) in. |
75(W)x75(D)x52.5(H) mm
3.0(W)x3.0(D)x2.1(H) in. |
| Molten Solder Capacity |
0.85 kg (1.87 lb.) |
1.2 kg (2.64 lb.) |
Note:
50 x 50 mm standard Crucible is included with the unit
75 x 75 mm square Extended Life Crucible is an optional part
Temperature accuracy and stability specifications are established at idle with a full 50 x 50mm crucible.
