UPC: 641328064062
JAN: 4962615038594
Part Number: FX600-05/P
What's in the box?
| Description |
Part No. |
| Soldering Iron |
FX-600 |
| Lock Key |
B3707
|
| Standard Tip |
T18-B |

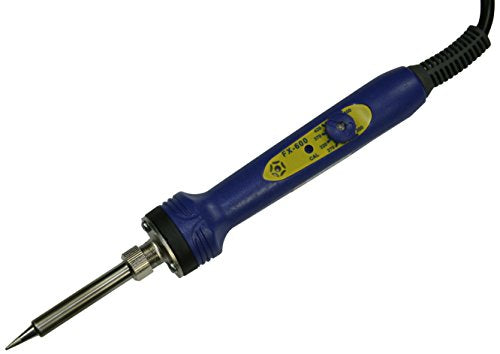

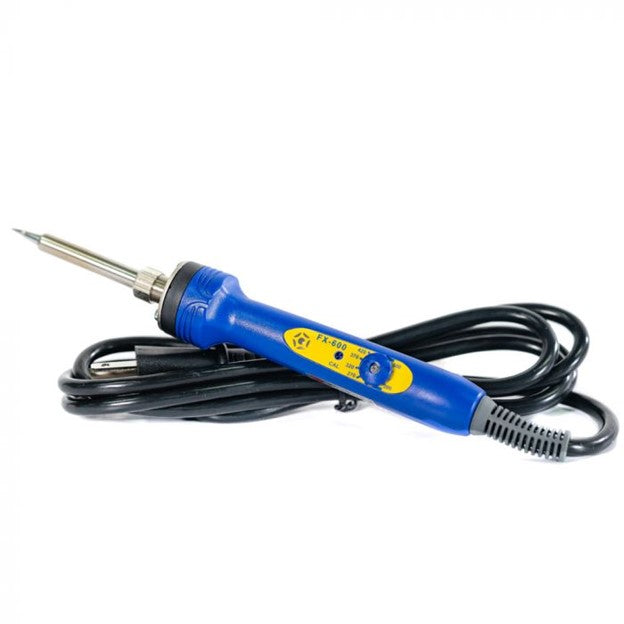

Details: A portable high performing 74W Soldering Iron, ideal for the hobbyist and electronics enthusiasts alike.
A lightweight portable soldering iron with a lock out temperature key. A perfect 74W iron for the DIY hobbyist that uses T18 tips. Over 30 different tip shapes at a temperature range from 400°-932°F.
- Adjustable temperature control
- Portable & lightweight
- Uses T18 series tips, versatile and compact
Specifications
| Model Name |
FX-600 |
| Part No. |
FX600-05/P |
| Input Voltage |
120VAC 60Hz |
| Power Consumption |
74W |
| Tip-to-Ground Resistance |
< 2 Ω |
| Leak Voltage |
< 2 mV |
| Temperature Range |
200‐500°C (400‐932°F) |
| Temp Accuracy |
±10°C (±18°F) |
| Temp Stability |
±1.0°C (±1.8°F) |
| Heater Type |
|
| Tips |
T18 Series |
| Standard Tip |
T18-B |
| Length (w/o cord) |
233 mm (9.17 in.) w/T18-B tip |
| Weight (w/o cord) |
61g (0.13 lb.) |
| Reach |
1.8m (6.0 ft.) |
| Country of Origin |
MYS
|
| Safety Approval |
 |
