Hakko

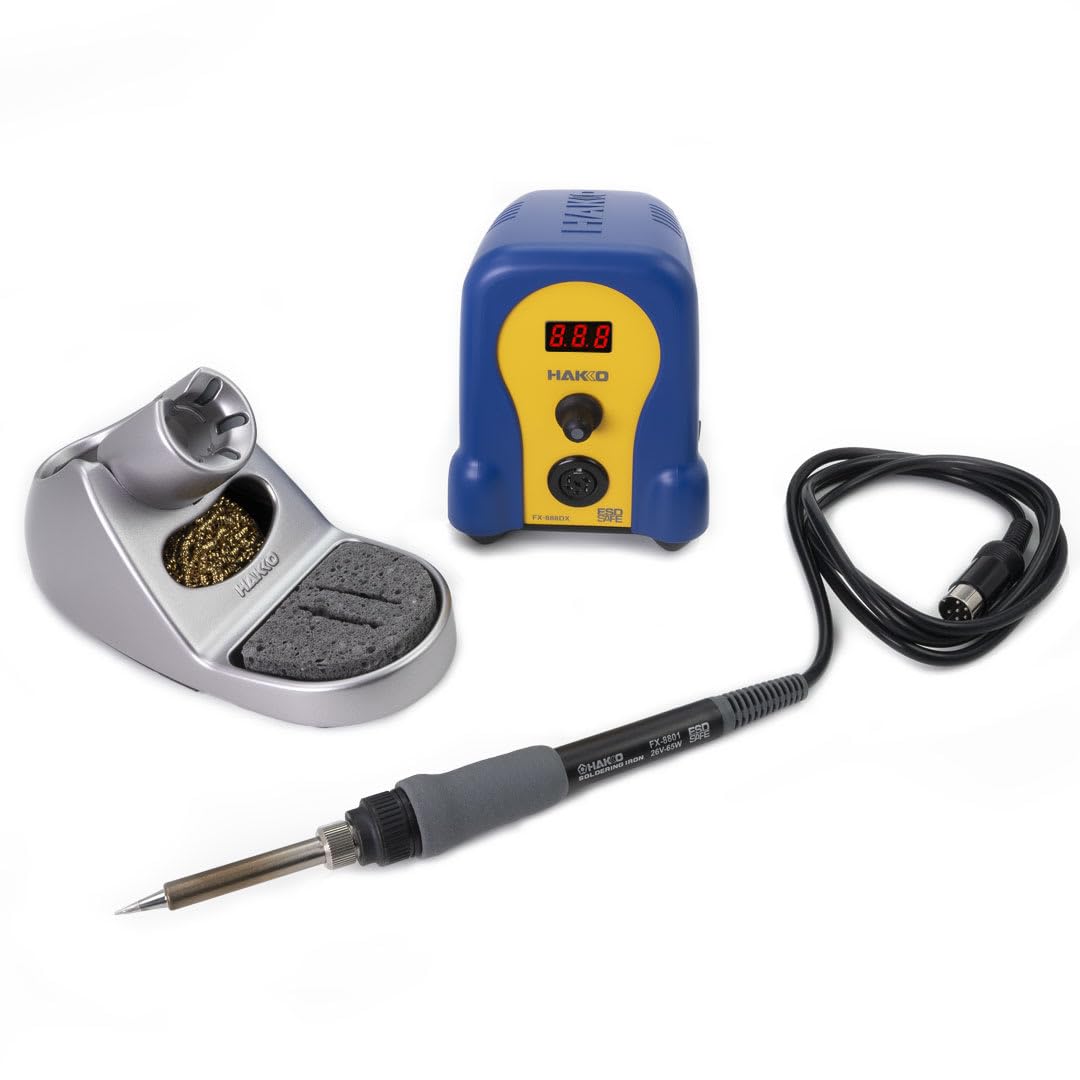

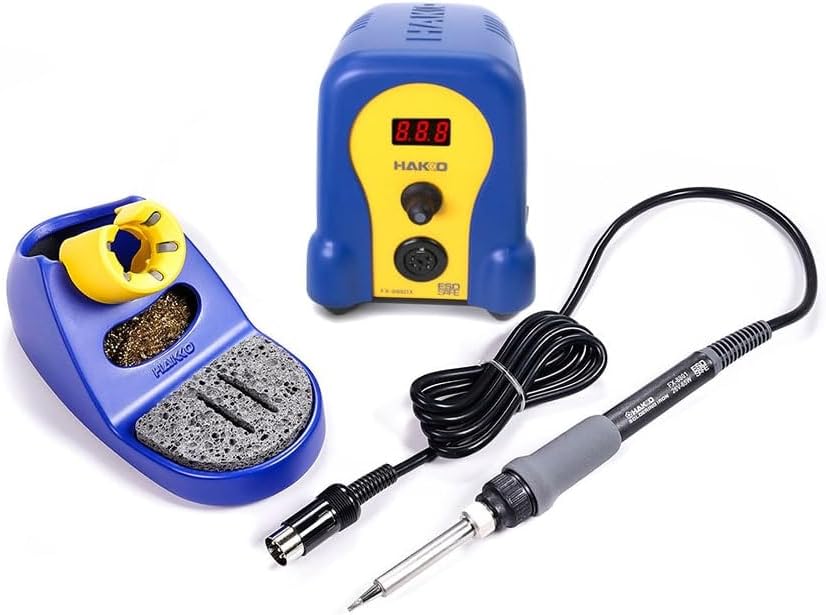

Hakko FX888DX-010BY - Digital Soldering Station with Rotary Encoder (Blue/Yellow Housing)

Hakko FX888DX-010BY - Digital Soldering Station with Rotary Encoder (Blue/Yellow Housing)

$129.99
$129.99 $129.99
Sale Sold out
Shipping calculated at checkout.
Color
Size

UPC: 641328089379

JAN: 4962615061226

Part Number: FX888DX-010BY

What's in the box?

 Description  Part No.
 Soldering Station  FX-888DX
 Soldering Iron  FX8801-02
 Soldering Iron Tip  T18-D16
 * Iron Holder for Classic Blue/Yellow Station 		 FH800-03BY
 * Iron Holder for Titanium Silver Station 		 FH800-05SV
 *Iron Holder for Sunflower Yellow Station 		 FH800-05SV
 Cleaning Sponge  A1559
 Tip Cleaning Wire  A1561
Instruction Manual  --

Details: The HAKKO FX-888DX Digital Soldering Station improves the user interface from the FX-888D using a more intuitive method for adjusting temperature and includes a parameter lock to prevent accidental digital calibration of the station when attempting to change temperature.  The new temperature dial combined with the digital display makes it easier than ever to set and see the temperature while also increasing its power.

Specifications

 Station
 Model Name  FX-888DX
 Part No.

 FX888DX-010BY

 FX888DX-010SV

 FX888DX-010YW
 Housing Color

 Classic Blue/Yellow

 Titanium Silver

 Sunflower Yellow
 Power Consumption  100W / 120VAC
 Temperature Range  120° - 899°F (50° - 480°C)
 Temperature Stability  ±1.8°F (1.0°C)
 Temperature Control  Closed-Loop Sensor
 Dimensions W x H x D  3.9 x 4.7 x 4.7 in. (100 x 120 x 120 mm)
 Shipping Dimensions W x H x D  9.5 x 7.3 x 9.5 in. (242 x 178 x 242 mm)
 Weight  2.6 lbs. (1.2 kg.)
 Shipping Weight  4.6 lbs. (2.13 kg.)
 ESD Safe  Yes
 Country of Origin  MYS
 IPC J-STD-001  Meets or Exceeds requirements
 Soldering Iron -   Handpiece
 Model Number  FX-8801
 Part Number  FX8801-02
 Power Consumption  65W / 26VAC
 Tip  T18 Series
 Standard Tip  T18-D16 (shape 1.6D)
 Tip-to-Ground Resistance  < 2 OHMS
 Tip-to-Ground Potential  < 2mV
 Heating Element
  Ceramic
 Length of Cord  3.9 ft. (1.2 m)
 Handpiece Length (w/o cord)  8.5 in. (217 mm) w/T18-D16 tip
 Weight (w/o cord)  0.1 lb. (46g) w/ T18-D16 tip
