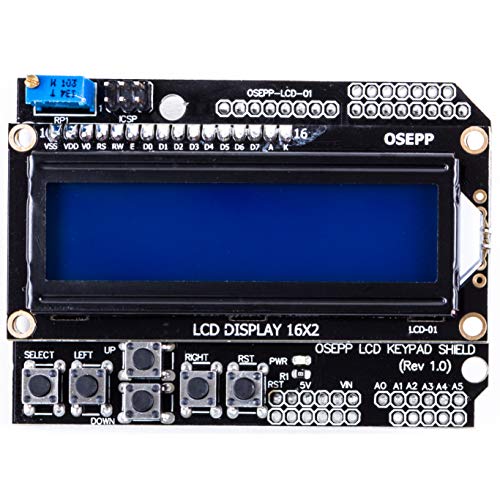

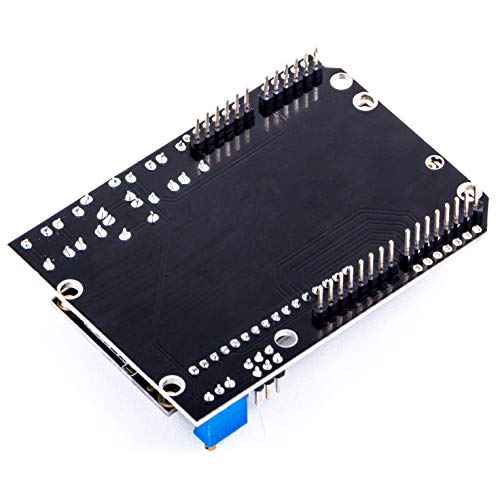

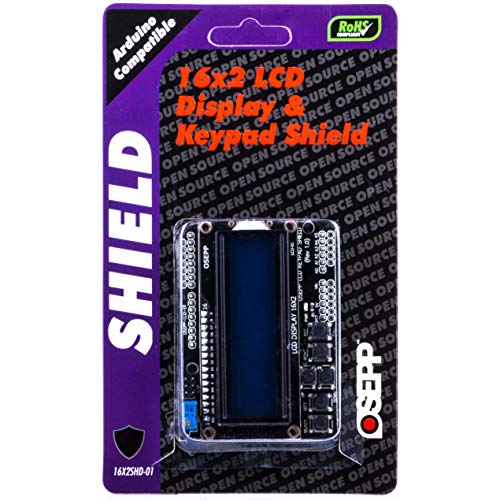

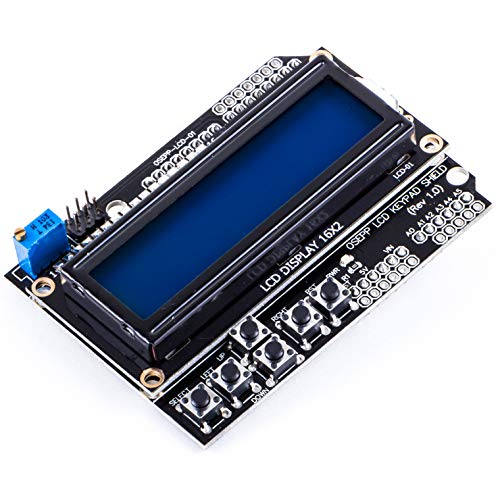

OSEPP 16X2SHD-01 LCD Display and Keypad Shield, 5 V, 16 x 2 Size

OSEPP 16X2SHD-01 LCD Display and Keypad Shield, 5 V, 16 x 2 Size

Regular price $18.10
Regular price Sale price $18.10
Sale Sold out


  • Mate with arduino and arduino compatible boards
  • Display up to 16 characters by 2 line
  • Integrated the splc780d 16 coms x 40 segs dot-matrix lcd controller and driver
  • 5V operating voltage
  • 5 button keypad - up, down, left, right, and select

Details: The OSEPP 16 x 2 LCD and keypad shield can plug directly onto the arduino and arduino compatible boards. The LCD panel displays characters in white with a Blue backlight and can display up to two lines of 16 characters. The shield includes six momentary push button that can be used to implement a five-button keypad including up, down, left, right and Select function. The sixth push button brings out the arduino's reset button to the top of the shield. The OSEPP 16x2 LCD and keypad shield interfaces with the arduino board using digital pin 4 to 10 and analog pin 0. The contrast can be adjusted via a trim pot and the backlight can be turn on and off. The shield is 5V compatible.

UPC: 899262000466

EAN: 0899262000466

Model: 16X2SHD-01

Item Condition: New
