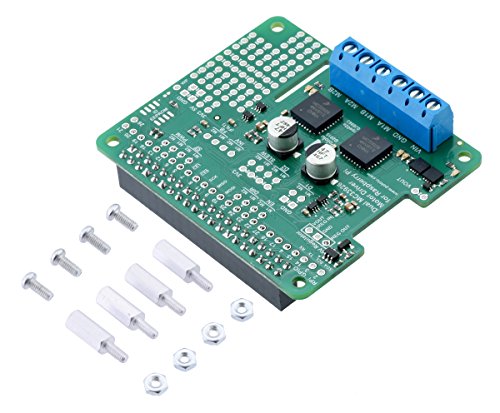

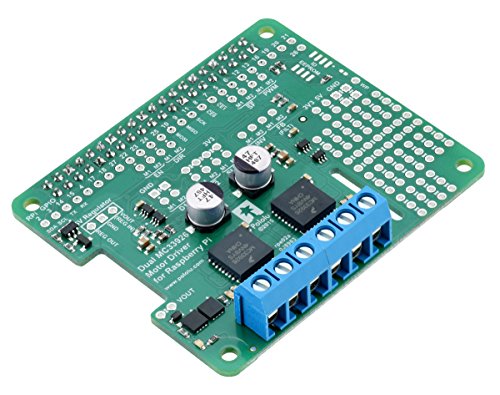

Pololu Dual MC33926 Motor Driver for Raspberry Pi (Assembled) (Item 2756)

Features:

• This add-on board enables a Raspberry Pi B+, A+, Pi 2, or Pi 3 to drive a pair of brushed DC motors
• Its dual MC33926 motor drivers operate from 5 V to 28 V and can deliver a continuous 3 A (5 A peak) per motor
• The default pin mappings make it easy to get started using our provided software, but the board also exposes most of the driver chips’ I/O pins for more specialized applications
• This version ships fully assembledwith connectors soldered in

Details: This add-on board enables a Raspberry Pi B+, A+, Pi 2, or Pi 3 to drive a pair of brushed DC motors. Its dual MC33926 motor drivers operate from 5 V to 28 V and can deliver a continuous 3 A (5 A peak) per motor. The default pin mappings make it easy to get started using our provided software, but the board also exposes most of the driver chips’ I/O pins for more specialized applications. This version ships fully assembled with connectors soldered in.

UPC: 810012581196

EAN: 0810012581196

Model: 2756

Item Condition: New
