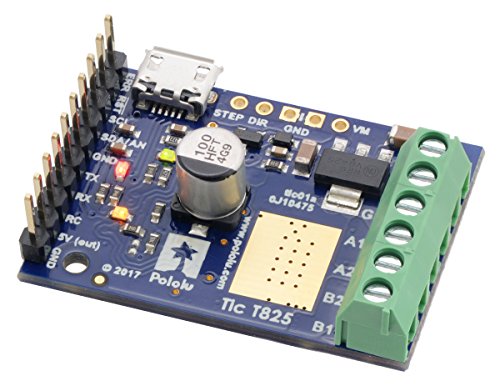

Pololu Tic T825 USB Multi-Interface Stepper Motor Controller (Connectors Soldered) (Item: 3130)

Features:

• The controller supports six control interfaces: USB, TTL serial, I²C, analog voltage (potentiometer), quadrature encoder, and hobby radio control (RC)
• This version incorporates a TI DRV8825 driver and ships with soldered header pins and terminal blocks
• It can operate from 8.5 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow

Details: The Tic T825 USB Multi-Interface Stepper Motor Controller makes basic control of a stepper motor easy, with quick configuration over USB using our free software. The controller supports six control interfaces: USB, TTL serial, I²C, analog voltage (potentiometer), quadrature encoder, and hobby radio control (RC). This version incorporates a TI DRV8825 driver and ships with soldered header pins and terminal blocks. It can operate from 8.5 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow.

UPC: 814358019900

EAN: 0814358019900

Model: 3130

Binding: Toy

Item Condition: New
