UPC: 641328059426
JAN: 4962615037399
Model: FA430-16

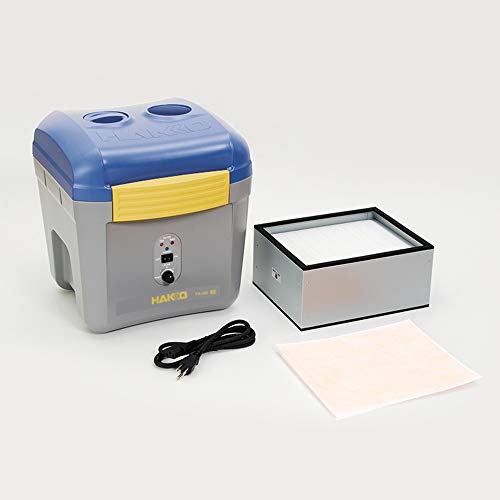

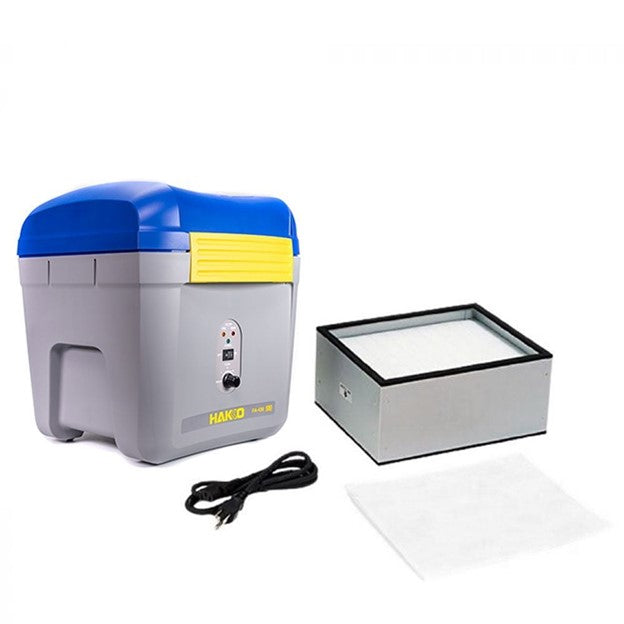

What's in the box?
| Description |
Part No. |
| Fume Extraction Unit
|
FA430-16
|
Pre-filter
|
A1585 |
Main Filter
|
A1586 |
Port Cap
|
B3619 |
Power Cable
|
B3641 |
| Instruction Manual
|
--
|
Details: The Hakko FA-430 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area.
An industrial use 3-stage filtration system for the manufacturing industry. The Hakko FA-430 Fume Extractor is designed specifically for use with soldering stations, extracting contaminated air directly at the source. It’s easy to use interface and powerful suction make set up quick and efficient. This dual port, multi-layered filtration unit is the perfect companion to any soldering station workbench backed by the quality and reliability of Hakko.
The Hakko FA-430 absorbs smoke and passes it through its multi-layered filtration system pumping out clean air for you to breathe. This filtration system has a 98% efficiency rate at capturing particles as small as 0.3 microns in size. Its flexible duct makes placement convenient for hard-to-reach areas and its simplistic designed interface makes it easy to operate.
With dual ports for 2 operators, a 3-layer filtration system with air purification vents, the HAKKO FA-430 keeps you safe and your air clean to breathe. The HAKKO FA-430 runs such a powerful filtration system that it has greater than a 98% efficiency rating at capturing particles as small as 0.3 microns, providing you with a safe environment in the workplace.
Specifications
| Part No. |
FA430-16 |
| Power Consumption |
110W / 120VAC |
| Motor Type |
Brushless |
| High Airflow (w/ single duct) |
4.1 m3/min (145 cfm) |
| Medium Airflow (w/ single duct) |
3.1 m3/min (109 cfm) |
| Low Airflow (w/ single duct) |
2.6 m3/min (92 cfm) |
| High. Airflow (w/ two ducts) |
4.7 m3/min (167 cfm) |
| Medium. Airflow (w/ two ducts) |
3.7 m3/min (109 cfm) |
| Low. Airflow (w/ two ducts) |
2.8 m3/min (99 cfm) |
| Vacuum Pressure |
1500 Pa (0.44 in. Hg) |
| Filtering Efficiency |
>98% 0.3µm
(capable of 99.97% @ 0.3µm) |
| Noise Level |
44 - 53 dB @ 1m |
| Dimensions |
330 (W) x 366 (H) x 343 (D) mm
(13.0 x 14.4 x 13.5 in.) |
| Weight |
7.5 kgs (16.5 lb.) |
| ESD Safe |
Yes |
| Country of Origin |
JPN
|
| Safety Approval |
 |
