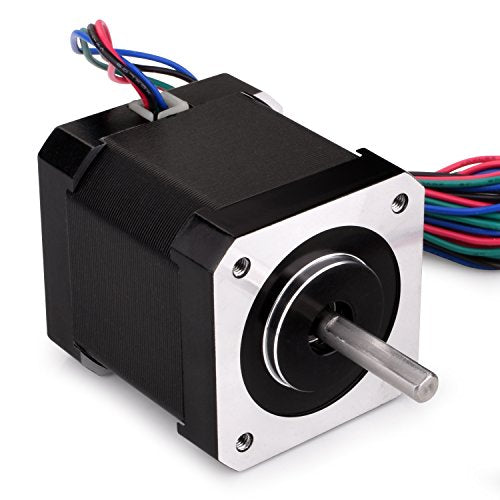

Stepper Motor Nema 17, AUKUYEE Stepper Motor Bipolar 2A 84oz.in(59Ncm) 46mm Body 4-Lead w/1m Cable and Connector with Mounting Bracket for 3D Printer/CNC

Color: 2A 84oz.in(59Ncm)

Features:

• NEMA-17 Stepper Motor 84 oz.in (59 Ncm) 47mm Body 1.8 degree with 1M 4-pin Cable and Mounting Bracket Kit DIY 3D Printer CNC Robot.
• 1m wire, one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled up.

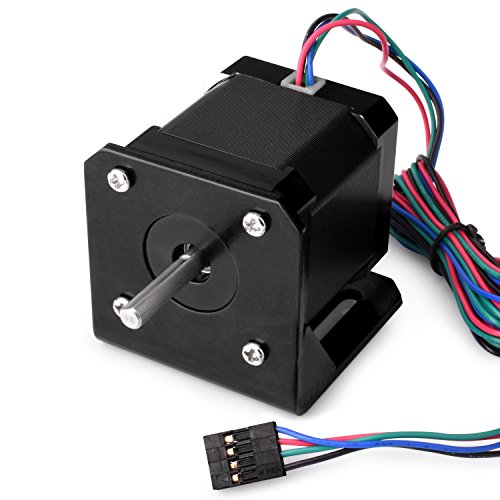

• 90 Degree Mounting Bracket with M3 screws.
• 84 oz.in (59 Ncm) Holding Torque.
• 1.8 degree step angle (200 steps/rev.)

Details: Stepper motor Specification: Motor Type: Bipolar Stepper Step Angle: 1.8 deg. Holding Torque: 59Ncm(84 oz.in) Rated Current/phase: 2.0A Frame Size: 41 x 41mm Body Length: 46mm Shaft Length: 22mm Weight: 380g Mounting Bracket Kit Specification: NEMA 17 Mounting Bracket - 90 degrees - M3 Screws Included (4) - Mounting Holes: 31mm center-to-center - Max Collar Diameter: 22mm - Powder-coated steel - Nema17 Standard - Mounting Holes: 31mm center-to-center - Max Collar Diameter: 22mm Package Including: 1 x Nema 17 stepper motor 1 x 1m Cable & Connector 1 x Nema 17 Stepper Motor Mounting Bracket 4 x M3 Screws Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

EAN: 6941344417861

Model: QD04-UK

Item Condition: New
